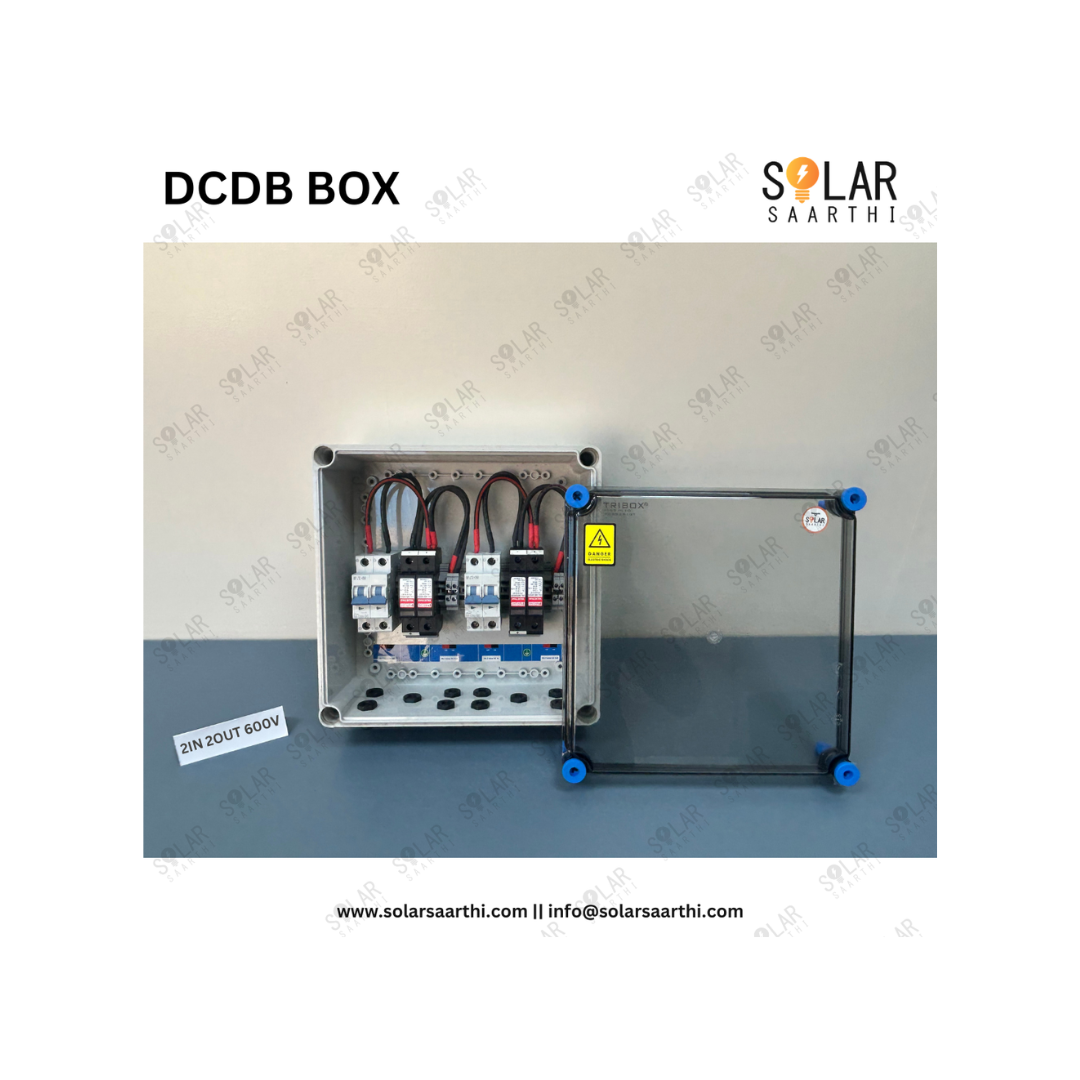

2-In 2-Out DCDB (Direct Current Distribution Board) – 600V

The 2-In 2-Out DCDB is an advanced protection and distribution unit designed for solar PV systems utilizing dual-string configurations. It serves as a centralized interface between two independent solar strings and a dual-MPPT inverter, providing isolated protection for each circuit to ensure maximum system uptime and safety.

System Overview

In a dual-string solar setup, the 2-In 2-Out DCDB provides independent circuit management. This allows the system to continue generating power from one string even if the other is isolated for maintenance or experiencing a fault. The board integrates high-voltage DC protection components for both strings within a single weatherproof enclosure, streamlining the wiring process and reducing the footprint of the installation.

Core Components

• Dual DC Fuses: Four high-voltage fuses (two per string) provide dedicated overcurrent protection for both the positive and negative lines of each independent PV string.
• Dual DC Surge Protection Devices (SPD): Two Type II SPDs rated for 600V DC ensure that voltage transients or lightning-induced surges on either string are safely diverted to the ground.
• Dual DC Isolators / MCBs: Two independent 2-pole load-break switches allow for the separate physical disconnection of each solar string from the inverter.
• IP65 Enclosure: A robust, UV-stabilized housing that protects the internal high-voltage components from rain, dust, and extreme temperature fluctuations.

Operational Importance

The 2-In 2-Out configuration is essential for modern high-efficiency inverters that feature multiple MPPT (Maximum Power Point Tracking) inputs. By keeping the strings electrically isolated within the DCDB, the board prevents cross-faults between strings and ensures that a malfunction in one part of the array does not compromise the entire system. This redundancy is a critical factor in maintaining high energy yields and long-term hardware reliability.
