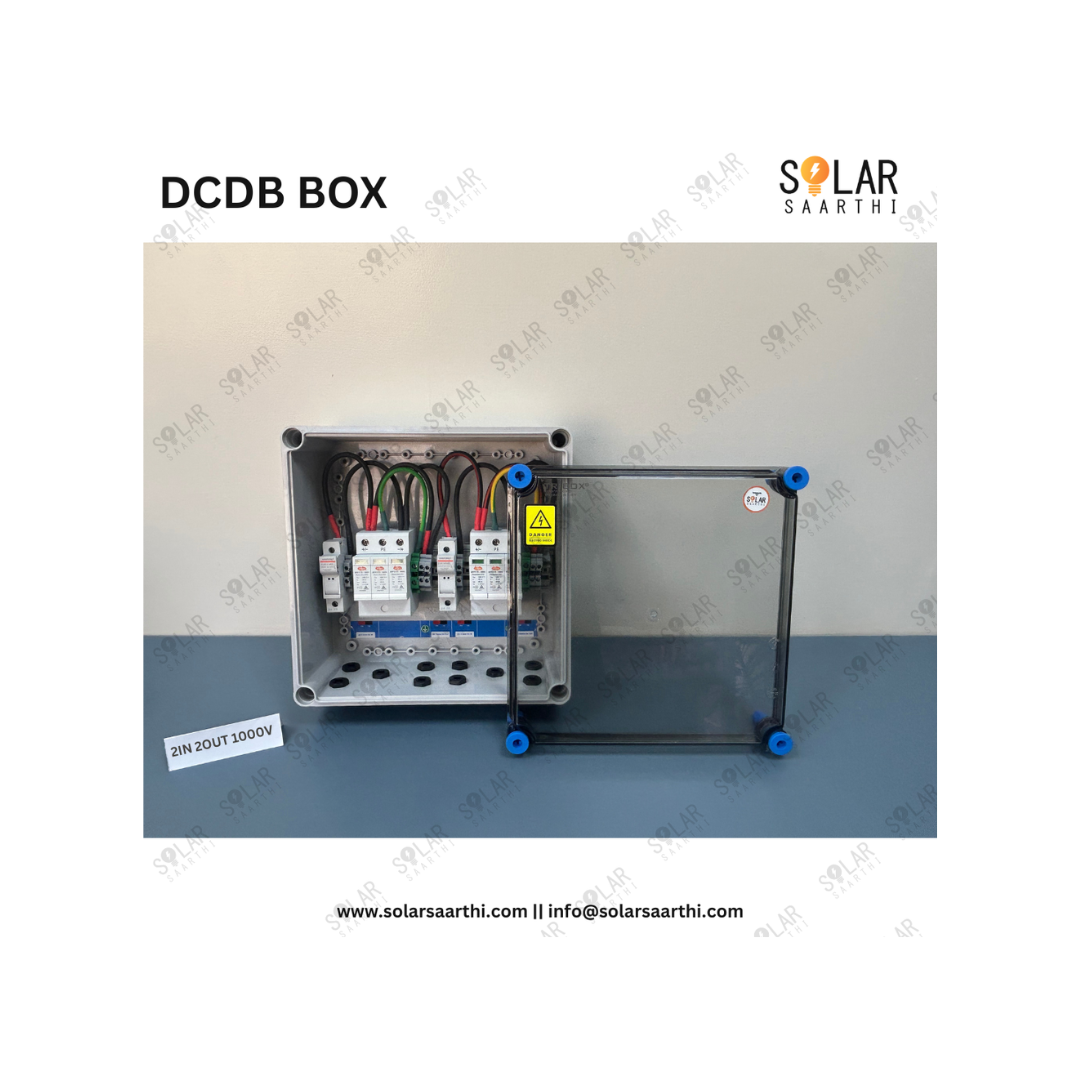

2-In 2-Out DCDB (Direct Current Distribution Board) – 1000V

The 1000V 2-In 2-Out DCDB is a high-capacity protection and distribution unit engineered for large-scale commercial and industrial solar PV systems. Designed to interface with dual-string arrays and high-voltage string inverters, this unit ensures that two independent 1000V DC circuits are managed with maximum safety, efficiency, and electrical isolation.

System Overview

As solar installations scale up, increasing the string voltage to 1000V reduces energy loss over long cable runs. This DCDB is specifically designed to handle the increased electrical stress and potential arcing associated with these high-voltage environments. By providing a 2-In 2-Out configuration, it allows two separate strings to feed into a dual-MPPT inverter while maintaining complete electrical separation between them.

Core Components

• High-Voltage DC Fuses: Four 1000V-rated DC fuses (two per string) provide dedicated overcurrent protection for the positive and negative terminals of both independent PV strings.
• 1000V DC Surge Protection Devices (SPD): Two Type II SPDs specifically rated for 1000V DC to protect the inverter and panels from transient overvoltages and atmospheric surges.
• Dual DC Isolators / Switch Disconnectors: Two independent 2-pole or 4-pole load-break switches that allow for the safe manual isolation of each string under load.
• Industrial Grade Enclosure: A reinforced, UV-stabilized housing with an IP65 or IP66 rating to protect internal components from moisture, dust, and extreme temperature cycles.

Operational Importance

At 1000V, the risk of high-energy DC arcing is a significant safety concern. The components within this DCDB are rigorously tested to ensure they can safely extinguish arcs that standard AC or lower-voltage DC equipment cannot handle. The 2-In 2-Out design ensures that a fault in one string remains isolated, allowing the second string to continue operating, thereby maximizing the system’s energy yield and protecting the investment in high-value inverter technology.
