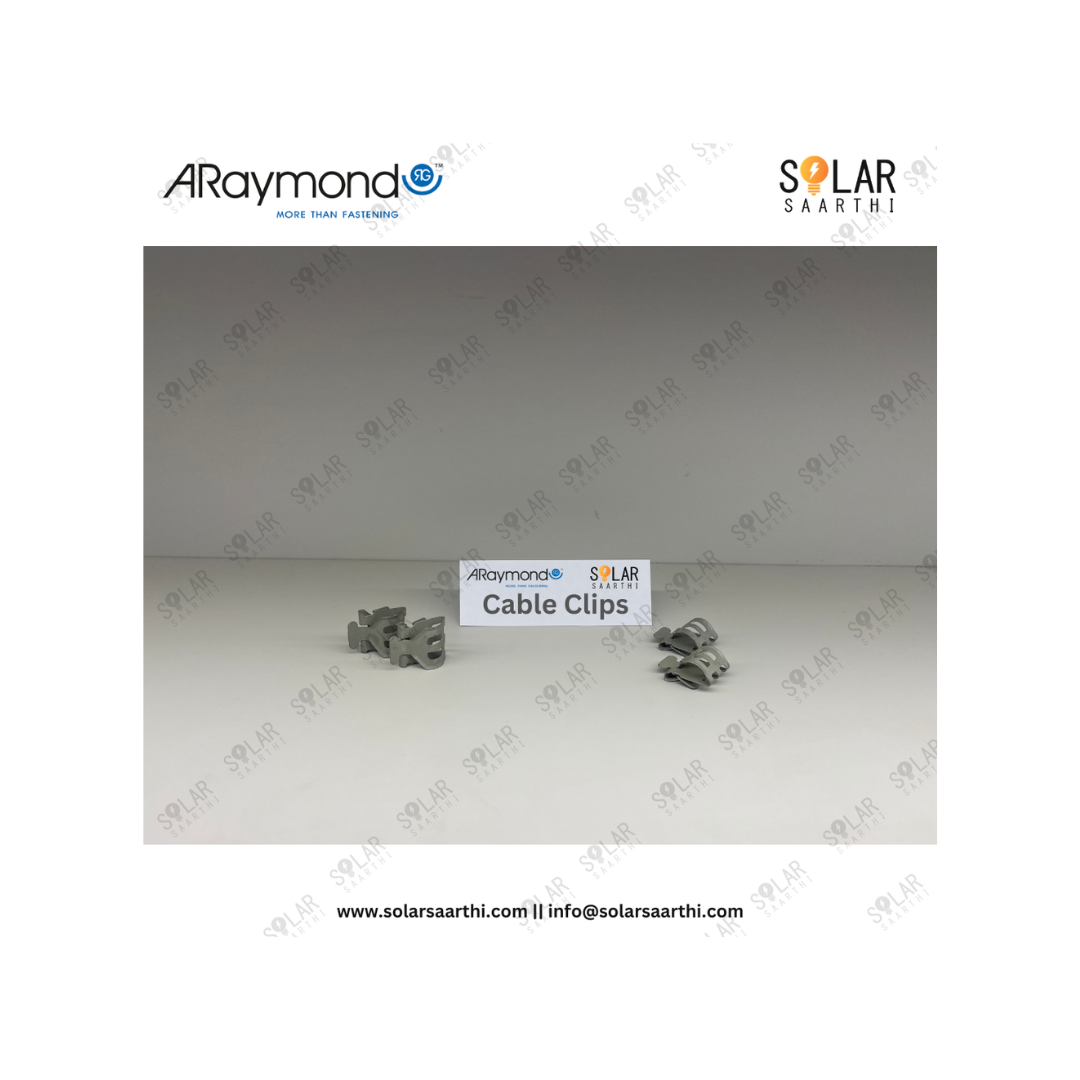

ARaymond Single Cable Clip Parallel to Edge

The ARaymond single cable clip parallel to edge is a precision-engineered fastening solution designed for the secure management of individual DC solar cables. This clip is specifically designed to fix a single cable along the edge of a solar module frame or mounting rail, ensuring the cable runs parallel to the structure for a clean and efficient wiring layout.

System Overview

In solar installations, managing individual cable runs is critical to preventing mechanical stress and environmental degradation. The parallel-to-edge design allows a single cable to be tucked neatly against the aluminum frame, protecting it from wind-induced vibration and preventing it from hanging below the module. This organization ensures that the cable remains within the protected boundary of the frame, reducing the risk of abrasion against sharp mounting components.

Key Features and Functions

• Precision Fit: Specifically contoured to hold a single cable securely without over-compressing the insulation.
• Edge Mounting: Features a high-tension clip design that attaches to the module frame edge without the need for drilling or specialized tools.
• Parallel Routing: Aligns the cable precisely with the frame edge, which is ideal for aesthetically sensitive installations and streamlined wire management.
• Material Integrity: Constructed from corrosion-resistant spring steel with a zinc-flake coating or high-grade UV-stabilized polymers to ensure a 25-year service life.

Operational Importance

Individual cable management is often overlooked but is essential for preventing long-term maintenance issues. When a single cable is allowed to sag, it can collect debris or become trapped in the mounting rails, leading to insulation failure and ground faults. By using ARaymond single cable clips, installers ensure that every inch of the DC string is supported and protected. This method not only complies with best-practice installation standards but also simplifies future inspections by keeping the wiring path visible and organized.
