ARaymond Multi Cable Clip Parallel to Edge

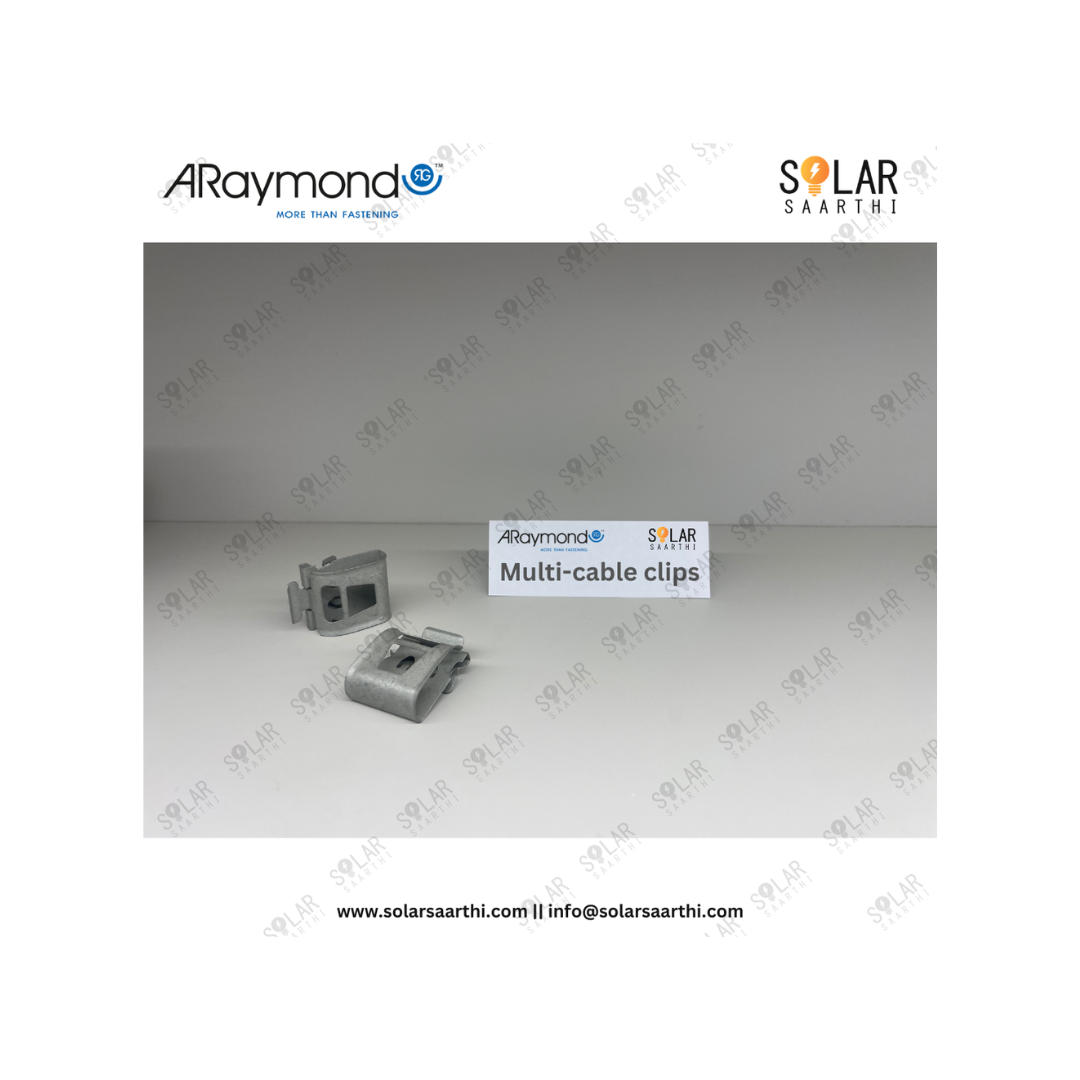

The ARaymond multi cable clip parallel to edge is a high-performance cable management solution designed specifically for solar photovoltaic installations. This clip is engineered to secure multiple DC cables along the edge of a solar module frame or mounting rail, ensuring they run parallel to the structure for a clean, organized, and protected wiring layout.

System Overview

Proper cable routing is essential to prevent electrical faults caused by cable sagging or abrasion. The parallel-to-edge design allows cables to be tucked neatly along the frame, minimizing exposure to environmental stressors and mechanical interference. By holding multiple cables in a single, secure attachment point, it reduces the number of clips required per module and simplifies the overall Balance of System (BOS) architecture.

Key Features and Functions

• Parallel Alignment: Secures cables in a fixed path parallel to the mounting surface, preventing entanglement and ensuring a professional finish.
• Multi-Cable Capacity: Designed to hold two or more solar DC cables simultaneously, typically ranging from 4sqmm to 6sqmm in diameter.
• Snap-On Mounting: Features a robust “S” or “U” shaped mounting interface that clips onto module frames without the need for tools or drilling.
• Tension Retention: Engineered with internal geometry that provides high extraction force, ensuring cables remain seated even under high wind loads or thermal expansion.

 Operational Importance

Loose wiring in a solar array is a leading cause of ground faults and insulation failure. When cables rub against the sharp edges of aluminum frames due to wind vibration, the outer jacket can degrade over time. ARaymond multi cable clips mitigate this risk by maintaining a consistent air gap between the cable and the metal edge. This organization also facilitates easier system troubleshooting and maintenance, as the wiring paths are clearly defined and securely held away from potential water traps or moving parts.
